Bison
Bison 12" 6 Jaw Self Centering Manual Chuck Set Tru Plain Back 7-868-8120
(No reviews yet)
Write a Review
- SKU:
- 7-868-8120
- MPN:
- 7-868-8120
- Condition:
- New
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
- Brand:
- Bison
- Type:
- Manual Chuck
- Style:
- Self Centering
- Diameter:
- 12" Chuck
- Jaws:
- 6 Jaw
- Spindle:
- Plain Back
- Spindle:
- Set Tru
- Material:
- Forged Steel
- Features:
- 1 Piece Jaw
Frequently bought together:
Description
Bison 12" 6 Jaw Self Centering Manual Chuck Set Tru Plain Back 7-868-8120
- Hardened and ground working surfaces
- Balanced scroll plate
- Repeatability: 0.0006"
- Fine adjustment radially set screws provide nearly 0 run-out
- The clamped workpiece is adjusted to the required concentricity by means of 4 (8 for Sizes 16", 20", 25") radially arranged adjusting screws
- Made for universal use, but particularly advantageous for grinding machines, indexing heads, and lathes
- Mounted on the machine tool spindle from the back of the chuck by using an adapter plate
- Requires set tru adapter plate. *Sold separately
| Manufacturer | Bison |
| Type | Manual Chuck |
| Style | Self Centering |
| Model Number | 7-868-8120 |
| Diameter | 12" |
| Number of Jaws | 6 |
| Spindle Mount | Plain Back |
| Adapter | Set Tru |
| Body Material | Forged Steel |
| Country of Origin | Poland |

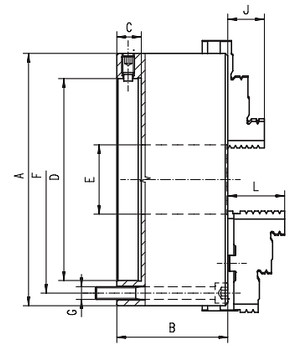

Dimensions
| A | 12.40" |
| B | 3.79" |
| C | 0.79" |
| D | 7.09" |
| E | 4.06" |
| F | 11.26" |
| G | 3xM16 |
| J | 1.61" |
| L | 2.20" |
| Weight | 123.46 lbs |
