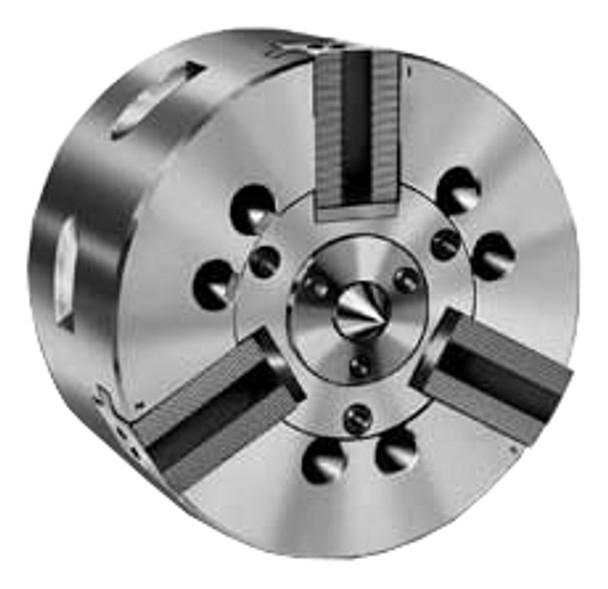

Pratt Burnerd 12" 3 Jaw Closed Center Float Compensation Power Chuck A2-8 Mount DFC12-A8

(No reviews yet) Write a Review
SKU:
DFC12-A8
MPN:
DFC12-A8
Condition:
New
Availability:
In Stock
Brand:
Pratt Burnerd
Type:
Power Chuck
Style:
Closed Center
Diameter:
12" Chuck
Jaws:
3 Jaw
Spindle:
A2-8
Contact us for pricing
Frequently bought together:

Description

Pratt Burnerd 12" 3 Jaw Closed Center Float Compensation Hydraulic Power Chuck A2-8 Mount DFC12-A8

  • Short overall length excellent for main or sub-spindle applications
  • Chuck accuracy is 0003” TIR from rear mounting register and working collet taper
  • High speed up to 6000 rpm
  • Body nickel plated for corrosion resistance
  • Hardened and ground main body and cone
  • Dead Length feature eliminates part pullback
  • Straight recess or available with A type mountings. Other mounting types available on request
  • In second operations work, shoulder components can be stopped against the face of the collet
  • Both collet types are internally threaded in the rear end to house either a backstop or ejector if required
  • Drawback Spring Collets achieve the highest possible concentric accuracy
  • Chuck includes threaded connector to customers specifications
Manufacturer Pratt Burnerd
Type Power Chuck
Style Float Compensation
Model Number DFC12-A8
Diameter (In) 12
Number of Jaws 3
Jaw Stroke Dia. (In) .984
Sleeve Stroke (In) 1.181
Comp. Range Stroke (In) .236
Min. Gripping Dia. (In) 1.181
Draw Bar Pull Lb/F 5,700
Grip Force Lb/F 9,250
Max RPM 2000
Country of Origin United Kingdom
