Pratt Burnerd 5C Air Powered Front Mount Dead Length Collet Chuck D1-3 Mount ATL206-5CD3

(No reviews yet) Write a Review
SKU:
ATL206-5CD3
MPN:
ATL206-5CD3
Condition:
New
Availability:
In Stock
Brand:
Pratt Burnerd
Type:
Power Collet Chuck
Style:
Air Powered
Capacity:
5C
Spindle:
D1-3
  • Pratt Burnerd 5C Air Powered Front Mount Dead Length Collet Chuck D1-3 Mount ATL206-5CD3
  • Pratt Burnerd 5C Air Powered Front Mount Dead Length Collet Chuck D1-3 Mount ATL206-5CD3
Contact us for pricing
Frequently bought together:

Description

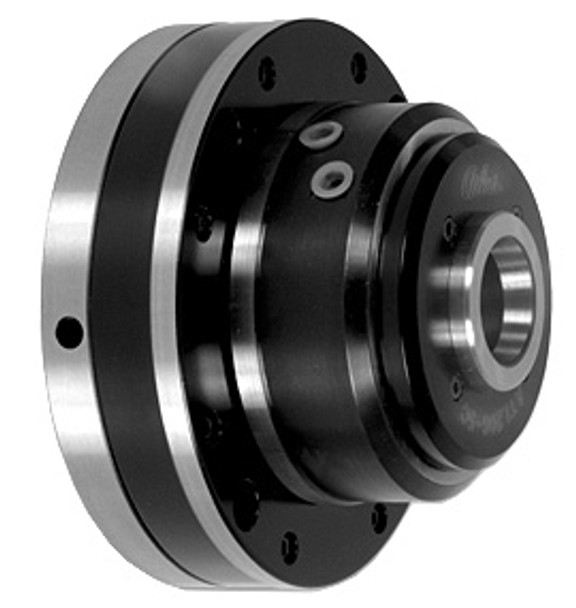

Pratt Burnerd 5C Air Powered Front Mount Dead Length Collet Chuck D1-3 Mount ATL206-5CD3

  • No hydrualic system required
  • No drawtube or air feed tubes restricting spindle bore
  • No rear cylinders and cylinder adapters
  • Low cost
  • Easily convert any lathe or grinder into a production machine
  • Ideal for rotary table applications
  • Change from collet chuck to standard chuck quick and easy
  • High speed 4000 RPM
  • High accuracy less than .001" T.I.R.
  • Repeats on duplicate parts plus minus .00015"
  • Dead length design
  • For best accuracy use high quality crawford collets
  • Lever or foot pedal actuated
  • Low maintenance with oil mist lubrication system
  • High resistance to coolant and chip penetration
  • Uses 5C collets, range 1/64" (.5mm) to 1-1/8" (27mm)
  • Available in A, D, L, 4 degree, threaded and straight recess mounting
Manufacturer Pratt Burnerd
Model No. ALT206-5CD3
Type Power Collet Chuck
Style Air Powered
Diameter 6.61"
Capacity 5C
Spindle Mount D1-3

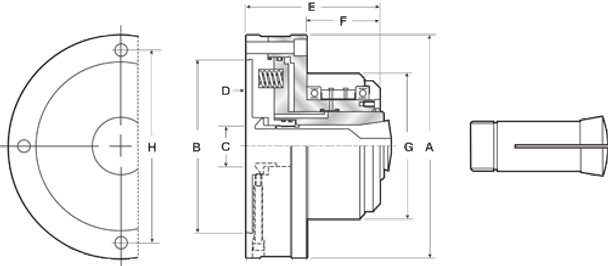

A 168mm (6.61")
B 130mm (5.12")
C 26mm (1.02")
D 5mm (0.20")
E 100mm (3.94")
F 55mm (2.17")
G 106mm (4.17")
H 147mm (5.79")
Screw Hole Diameter 9mm (0.35") x 4
Collet Type 5C Collets
Max RPM 4000
Sleeve Stroke 4mm (0.16")
Air Pressure 3-8 kg/cm2 (42-114 psi)
Through Hole Diameter 26mm (1.06")
Chuck Weight 10kg (22 Lbs)
Grip Force 10,500 Lbs @ 100 PSI
Country of Origin United Kingdom
