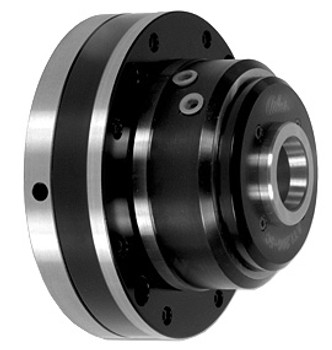

Pratt Burnerd 6" 16C Dead Length Power Collet Chuck A2-6 Mount CPD-16CA6

(No reviews yet) Write a Review
SKU:
CPD-16CA6
MPN:
CPD-16CA6
Condition:
New
Availability:
In Stock
Brand:
Pratt Burnerd
Type:
Power Collet Chuck
Style:
Dead Length
Diameter:
6" Chuck
Capacity:
16C
Spindle:
A2-6
Contact us for pricing
Frequently bought together:

Description

Pratt Burnerd 6" 16C Dead Length Power Collet Chuck A2-6 Mount CPD-16CA6

  • Short overall length excellent for main or sub-spindle applications
  • Chuck accuracy is 0003” TIR from rear mounting register and working collet taper
  • High speed up to 6000 rpm
  • Body nickel plated for corrosion resistance
  • Hardened and ground main body and cone
  • Dead Length feature eliminates part pullback
  • Straight recess or available with A type mountings. Other mounting types available on request
  • In second operations work, shoulder components can be stopped against the face of the collet
  • Both collet types are internally threaded in the rear end to house either a backstop or ejector if required
  • Drawback Spring Collets achieve the highest possible concentric accuracy
  • Chuck includes threaded connector to customers specifications
Manufacturer Pratt Burnerd
Type Power Collet Chuck
Style Dead Length
Model Number CPD-16CA6
Diameter (In) 6
Capacity 16C
Spindle Mount A2-6
Max RPM 5000
Nose Diameter (In) 3.543
Country of Origin United Kingdom
