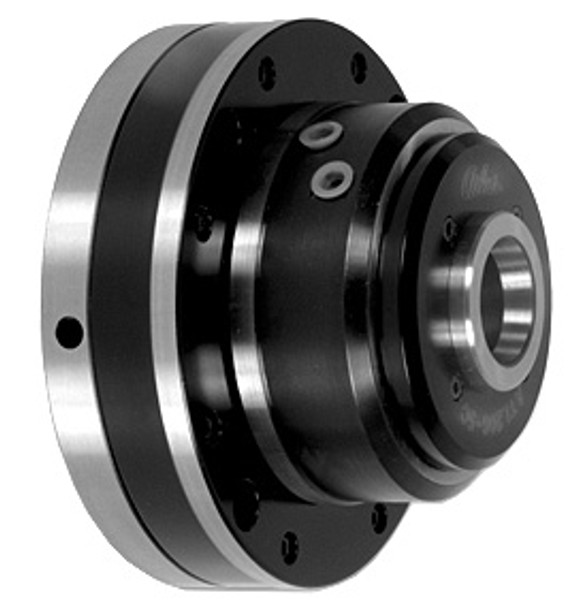

Pratt Burnerd B60 Air Powered Front Mount Dead Length Collet Chuck D1-4 Mount ATL208-B60D4

(No reviews yet) Write a Review
SKU:
ATL208-B60D4
MPN:
ATL208-B60D4
Condition:
New
Availability:
In Stock
Brand:
Pratt Burnerd
Type:
Power Collet Chuck
Style:
Air Powered
Capacity:
B60
Spindle:
D1-4
  • Pratt Burnerd B60 Air Powered Front Mount Dead Length Collet Chuck D1-4 Mount ATL208-B60D4
  • Pratt Burnerd B60 Air Powered Front Mount Dead Length Collet Chuck D1-4 Mount ATL208-B60D4
Contact us for pricing
Frequently bought together:

Description

Pratt Burnerd B60 Air Powered Front Mount Dead Length Collet Chuck D1-4 Mount ATL208-B60D4

  • No hydrualic system required
  • No drawtube or air feed tubes restricting spindle bore
  • No rear cylinders and cylinder adapters
  • Low cost
  • Easily convert any lathe or grinder into a production machine
  • Ideal for rotary table applications
  • Change from collet chuck to standard chuck quick and easy
  • High speed 2500 RPM
  • High accuracy less than .001" T.I.R.
  • Repeats on duplicate parts plus minus .0002"
  • Dead length design
  • For best accuracy use high quality crawford collets
  • Lever or foot pedal actuated
  • Low maintenance with oil mist lubrication system
  • High resistance to coolant and chip penetration
  • Uses B60 collets, range 1/16" (1mm) to 2-3/8" (60.5mm)
  • Available in A, D, L, 4 degree, threaded and straight recess mounting
Manufacturer Pratt Burnerd
Model No. ATL208-B60D4
Type Power Collet Chuck
Style Air Powered
Diameter 8.15"
Capacity B60
Spindle Mount D1-4

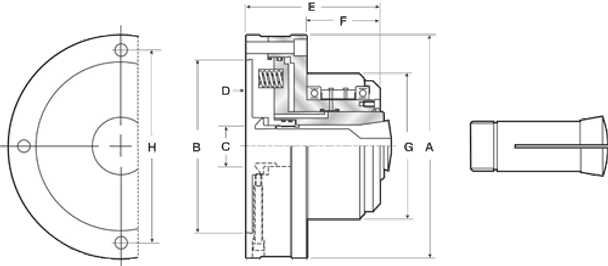

A 207mm (8.15")
B 170mm (6.69")
C 60.5mm (2.37")
D 5mm (0.20")
E 148mm (5.83")
F 86mm (3.39")
G 168mm (6.61")
H 186mm (7.32")
Screw Hole Diameter 11mm (0.43") x 3 - M10 x P1.5 x 3
Collet Type B60 Collets
Max RPM 2500
Sleeve Stroke 4mm (0.16")
Air Pressure 3-8 kg/cm2 (42-114 psi)
Through Hole Diameter 65mm (2.375")
Chuck Weight 18kg (42.6 Lbs)
Grip Force 15,950 Lbs @ 100 PSI
Country of Origin United Kingdom
